PN:9MA52MS2H-00-G13
PLACA BASE A520M S2H GIGABYTE
AM4 / DDR4 / AMD A520 / HDMI x1, D-Sub x1, DVI-D x1 / Micro ATX
PN:9MA52MS2H-00-G13
PLACA BASE A520M S2H GIGABYTE
AM4 / DDR4 / AMD A520 / HDMI x1, D-Sub x1, DVI-D x1 / Micro ATX
- ●Chipset: AMD A520
- ●Formato: Micro ATX
- ●Hdmi: Si
- ●Imagen Salida: Graficos en CPU, VGA, DVI-D , HDMI
- ●Memoria Maxima: 64
- ●Microprocesador Integrado: No
- ●Multi-Grafica: No
- ●Nº Bancos De Memoria: 2
- ●Nº Conexiones SATA: 4
- ●Nº USB 2.0: 2 Traseros, 4 Internos
- ●Nº USB 3.2 Gen1: 4 Traseros, 2 Internos
- ●Pci: 1 PCIe 3.0 x16, 2 PCIe 3.0 x1
- ●Raid: Si
- ●SATA 6Gb/S: 4
- ●Socket: AMD AM4
- ●Soporta Optane: No
- ●Tecnologia De Memoria: DDR4
- ●Tipo De Raid: 0,1,10
- ●USB-C: 1
- ●USB3.0 Interno: 1
Especificaciones:
Procesador
AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
(Please refer "CPU Support List" for more information.)
Chipset
AMD A520
Memoria
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Gráfica Integrada
Integrated Graphics Processor:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Support for up to 3 displays at the same time
Maximum shared memory of 16 GB
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN
Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Zócalos de Expansión
CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
2 x PCI Express x1 slots, supporting PCIe 3.0
Interfaz de almacenamiento
CPU:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
USB
CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Conectores Internos E/S
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x speaker header
1 x chassis intrusion header
1 x Clear CMOS jumper
All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

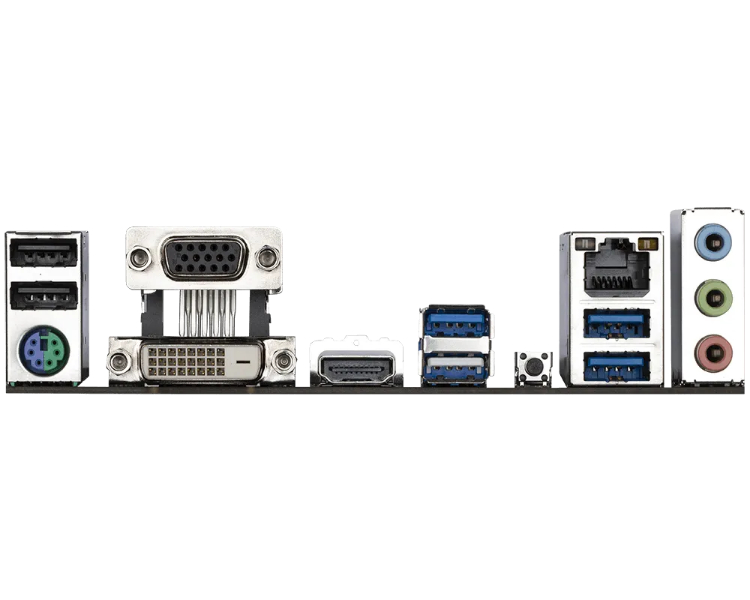

Panel E/S Trasero
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x Q-Flash Plus button
3 x audio jacks
Controlador E/S
iTE® I/O Controller Chip
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Formato
Micro ATX Form Factor; 24.4cm x 20.5cm
